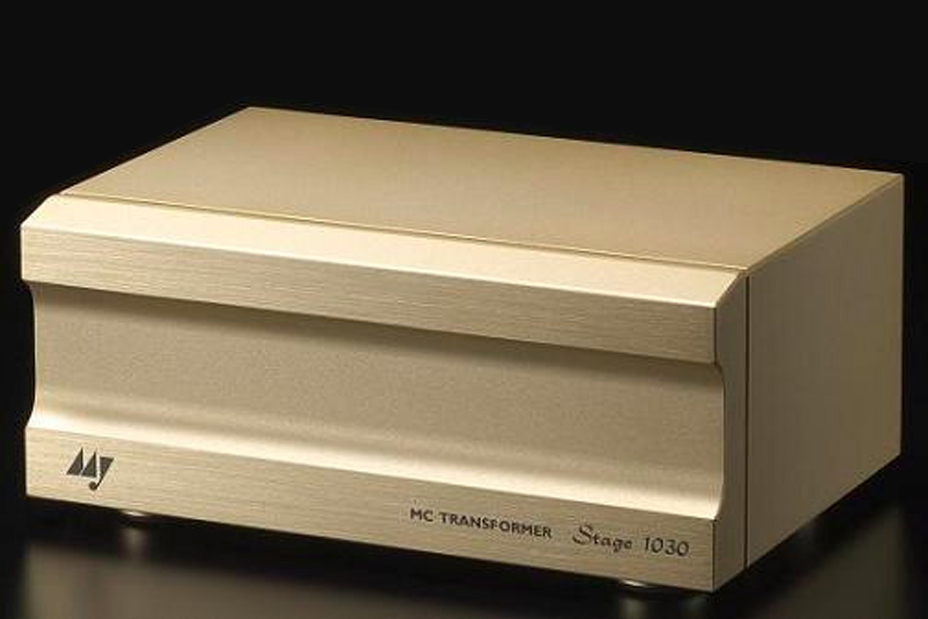

My Sonic Lab Stage 1030 step-up transformer
Overview
MY SONIC LAB – Step Up Transformer 1030
For Low Impedance MC Cartridges
The best match for ultra low internal impedance MC cartridges (+/-1 Ohm). It is also a good match for low impedance cartridges from 0.3~6 Ohms. Switchable input selector floating balance or earth grounded Special ultra Hi-μ core “PC-SXII”
See Technical specifications
Specifications
My Sonic Lab Stage Step Up Transformer 1030
- Type : For low impedance moving coil cartridges
- Frequency response : 10Hz ~ 100kHz (1Ω/47kΩ)
- Boost Ratio : 26dB, (1Ω/47kΩ/1kHz)
- Input impedance : 0.3Ω ~ 6Ω (cartridge impedance)
- Load Resistance : 47kΩ ~ 100kΩ
- Channel balance : below 0.1dB (1kHz)
- Terminals : rhodium-plated pins (pin RCA / Ground)
- Others : input selector with floating ground; Terminator circuit with output
- Dimensions : 150 (W) × 65 (H) × 110 (D) mm
- Weight : 1.7kg
